SOL-I-AX-5M4

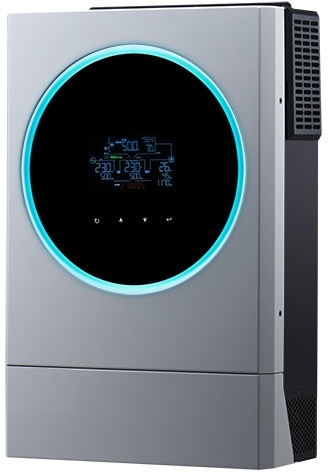

Mecer Axpert 5.6K MKS IV 5600VA / 5600W 48V Pure Sine Wave MPPT Inverter charger

Mecer - Mecer Axpert 5.6K MKS IV 5600VA / 5600W 48V Pure Sine Wave MPPT Inverter charger, Up to 9 units parallel capability, 10 ms transfer time, Pure Sine Wave Waveform, 93% efficiency (Peak), 48 VDC battery voltage, 450 VDC Maximum PV Array open Circuit voltage, 6000 W Maximum PV Array power
BUY TODAY ! Expected to be in Stock at suppliers.* print


Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. SOL-I-AX-5M4 Mecer Axpert 5.6K MKS IV 5600VA / 5600W 48V Pure Sine Wave MPPT Inverter charger is available from Mecer PC and it is sold as new from our Inverters range of products. For reference purposes, the price of R14740 is valid 2022-05-18, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Inverters category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

SOL-I-AX-5M4

Mecer Axpert 5.6K MKS IV 5600VA / 5600W 48V Pure Sine Wave MPPT Inverter charger

Mecer Axpert 5.6K MKS IV 5600VA / 5600W 48V Pure Sine Wave MPPT Inverter charger, Up to 9 units parallel capability, 10 ms transfer time, Pure Sine Wave Waveform, 93% efficiency (Peak), 48 VDC battery voltage, 450 VDC Maximum PV Array open Circuit voltage, 6000 W Maximum PV Array power

Overview:

Axpert MKS IV - With MPPT solar Charger
Axpert MKS IV is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in a compact size. The new generation of Axpert MKS comes with a built-in Wi-Fi function, mobile monitoring can be carried out through mobile applications. Data can be accessed and recorded in the inverter, which is convenient for tracking the operation status of the inverter. It also supports USB On-The go function for easy rewriting of internal parameters, data downloads, and software updates.

Features:

  • Pure sine wave MPPT solar Inverter
  • Customizable status LED ring with RGB lights
  • Touchable button with large 4.3 colored LCD
  • Wide DC input range
  • Supports USB On-the-Go function
  • Datalog events stored in the inverter
  • Built-in Wi-Fi for mobile monitoring (Android/iOS App available)
  • Reserved communication port for BMS
  • Battery independent function
  • Parallel operation with up to 9 units


Specifications:

© 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeSOL-I-AX-5M4spacer
MODELAxpert MKS IV 5600-48
Rated Power5600VA/5600W
Parallel CapabilityYes, up to 9 units
INPUT
Voltage230 VAC
Selectable Voltage Range170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range55/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)230 VAC ± 5%
Surge Power5600 VA
Efficiency (Peak)93%
Transfer Time10 ms (For Personal Computers), 20 ms (For Home Appliances)
WaveformPure Sine Wave
BATTERY
Battery Voltage48 VDC
Floating Charge Voltage54 VDC
Overcharge Protection66 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage450 VDC
Maximum PV Array Power6000 W
MPPT Range @ Operating Voltage120 VDC~430 VDC
Maximum Solar Charge Current120A
Maximum AC Charge Current120A
PHYSICAL
Dimension, D X W X H (mm)140 x 295 x 468
Net Weight (kgs)12
CommunicationUSB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
