SOL-I-AX-8M2

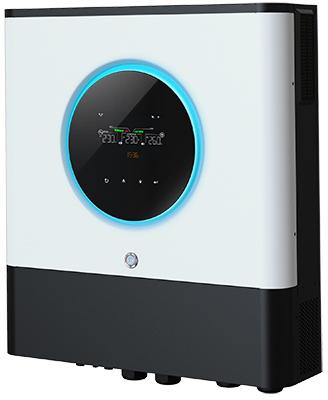

Mecer Axpert Maximum II 8kVA / 8kW Pure Sine Wave Inverter - 48V DC - 8KW Solar

Mecer - Mecer MX2 8K48V Axpert Maximum II 8kVA / 8kW Pure Sine Wave Inverter, 8000 VA / 8000 W rated power, 16000 VA surge power, 0.93 efficiency (Peak), 15 ms transfer time, 48 VDC battery voltage, Batteries not included, Battery not required to operate, 8000W Maximum PV Array power with Dual MPPT, 500 VDC Maximum PV Array open Circuit voltage, 6 units parallel capability
BUY NOW - selling fast! Limited Stock at suppliers.* print


Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. SOL-I-AX-8M2 Mecer Axpert Maximum II 8kVA / 8kW Pure Sine Wave Inverter - 48V DC - 8KW Solar is available from Mecer PC and it is sold as new from our Inverters range of products. For reference purposes, the price of R20305 is valid 2021-09-24, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Inverters category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

SOL-I-AX-8M2

Mecer Axpert Maximum II 8kVA / 8kW Pure Sine Wave Inverter - 48V DC - 8KW Solar

Mecer MX2 8K48V Axpert Maximum II 8kVA / 8kW Pure Sine Wave Inverter, 8000 VA / 8000 W rated power, 16000 VA surge power, 0.93 efficiency (Peak), 15 ms transfer time, 48 VDC battery voltage, Batteries not included, Battery not required to operate, 8000W Maximum PV Array power with Dual MPPT, 500 VDC Maximum PV Array open Circuit voltage, 6 units parallel capability

Overview:

Axpert MAX II - Customizable status LED ring with RGB lights
The powerful Axpert MAX II is equipped with a 150A MPPT solar charger, a newly upgraded 5-inch color LCD and touchable button. It can also access data and record it in the inverter to facilitate tracking of the inverters operating status.

Features:

  • Customizable status LED ring with RGB lights
  • Touchable button with large 5 colored LCD
  • Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
  • Supports USB On-the-Go function
  • Datalog events stored in the inverter
  • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Configurable AC/PV output usage timer and prioritization
  • Selectable high power charging current
  • Compatible to Utility Mains or generator input
  • Built-in anti-dust kit
  • Built-in DC output for DC fan, LED bulb, router and so on.
  • Parallel operation with 6 units


Specifications:

© 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code RCT-AXPERT MX2 8K48V
MODEL Axpert MAX II 8000
Rated Power 8000 VA / 8000 W
Parallel Capability Yes, 6 units
INPUT
Voltage 230 VAC
Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliance)
Frequency Range 50/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation 230 VAC ± 5%
Surge Power 16000 VA
Efficiency (Peak) 0.93
Transfer Time 15 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform Pure Sine Wave
No Load Power Consumption < 75W
DC Voltage (Optional) 12 VDC ± 5%, 100W
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type MPPT
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Array Power 8000W (4000W x 2)
MPPT Range @ Operating Voltage 90~450 VDC
Maximum Solar Charge Current 150A
Maximum AC Charge Current 120A
Maximum Charging Current 150A
PHYSICAL
Dimension, D X W X H (mm) 158.4 x 502.5 x 530.8
Net Weight (kgs) 20
Communication Port USB/RS232/RS485/Wifi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
STANDARD
Compliance Safety CE
