IVR-2400MPPT

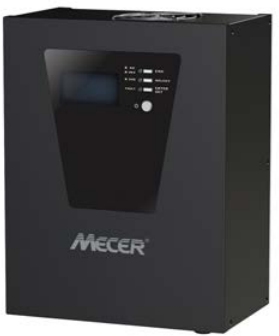

Mecer 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in

Mecer - Mecer IVR-2400MPPT 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 2x 12V deep cycle battery *compatible with Lead acid and Lithium batteries* Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery
BUY TODAY ! Expected to be in Stock at suppliers.* print



Rated 4/5 by 1 user



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. IVR-2400MPPT Mecer 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in is available from Mecer PC and it is sold as new from our Inverters range of products. For reference purposes, the price of R3235 is valid 2025-04-28, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Inverters category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

IVR-2400MPPT

Mecer 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in

Mecer IVR-2400MPPT 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 2x 12V deep cycle battery *compatible with Lead acid and Lithium batteries* Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery

Features:

  • Simulated sinewave inverter
  • Wide input voltage range
  • Overload and short circuit protection
  • LCD display for comprehensive information
  • MPTT

Mecer 2400VA / 1800W 24V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-2400MPPT

External Batteries Required

Features

  • Simulated sinewave inverter
  • Wide input voltage range
  • Overload and short circuit protection
  • LCD display for comprehensive information
  • MPPT


Specifications:

  • Model: IVR-2400MPPT
  • Capacity: 2400VA / 1800W
  • Power Factor: 0.75

Input:

  • Voltage 220-240 VAC
  • Voltage Range 90-280 VAC
  • Nominal Operating Frequency 50/60Hz
  • Maximum Input Current 13A

Output:

  • Nominal Output Voltage 220-240 VAC
  • Voltage Regulation (Batt. Mode) +/-10%
  • Output Frequency Range 50/60Hz
  • Nominal Output Current 10.4A
  • Inrush Current 13A
  • Maximum Output Fault Current 13.6A
  • Transfer Time 20 ms typical
  • Waveform Simulated Sine Wave

Battery:

  • Battery Voltage 24 VDC
  • Maximum Battery Discharging Current 90A
  • Floating Charge Voltage 27.4 VDC +-1 VDC

CV Charging Voltage

  • Lead Acid Battery 28.6VDC +-1VDC
  • Lithium Battery 29.2 VDC +-1 VDC
  • Cut Off Voltage 21.0 VDC +-1 VDC
  • Maximum AC Charging Current 10 A or 25 A

Solar Charger:

  • Solar Charger Type MPPT
  • Maximum PV Array Open Circuit Voltage 100 VDC
  • MPP Range @ Operating Voltage 30 ~ 80 VDC
  • Max. PV array Input Power 1650W
  • Max. PV array Power to support 1320W
  • Maximum Solar Charging Current 55 A
  • Maximum Charging Current (Utility +SCC) 55 A

Physical:

  • Dimension (DxWxH) mm 272 x 212 x 127
  • Net Weight (kgs) 4.8
  • Protective Class I
  • Ingress Protection Rating IP20


Environment:

  • Humidity 0 ~ 90% RH (No condensing)
  • Operating Temperature 0 ~ 55degC
  • Altitude 0 ~ 1000 m









© Respective owners and brand holders. © 2025 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Reviews IVR-2400MPPT Mecer 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in

Review
Do you have an opinion about this product? [+] Add your review

Rated 4/5 by 1 user

Vision Thing
27 Nov 2024 07:30:41
Purchased this unit with relatively low expectation due to the inexpensive nature of the unit. 18 months later I am still surprised by it's performance. The MPPT allows for a fairly wide solar array configuration (Though higher Volts and lower Amps is more efficient for the DC current coming from the solar array). My only (hopefully positive) criticism on this unit is that it is Simulated Sine wave versus True Sine ... If I was Mustek, I would definitely try motivate the manufacturer to "upgrade" the units to True Sine ... That said, this unit has served my electronic equipment well (Flat Screen Displays, Internet ONT, Routers, WiFi AP's, CCTV, PC, Laptop and server) ... Running with 4 X 410W solar panels in a 2S2P configuration has perfectly suited the MPPT specification and I find the 5.12Kwh my two mecer lifepo4 batteries offers to adequately provide me with all electrical power requirements on most days (Yip, rainy days require approx a 50% utility provider input). This system has 50% payed for itself so far (18 months) and if it wasn't for the requirement of True Sine to run inductive loads more efficiently, I would not consider changing. It is important to understand the settings completely and set these absolutely correctly as failure to do so will result in expensive loss/damage. Please ensure this is done correctly to prevent disappointment. I would suggest this unit with the above solar array and 2 X 200A 2,54Kwh Mecer Lifepo4 batteries in series. N.B Cable thickness requirements should be strictly adhered to or over-spec'd. Definitely better than expected.
